2008 Chevrolet C4500
1
/
18

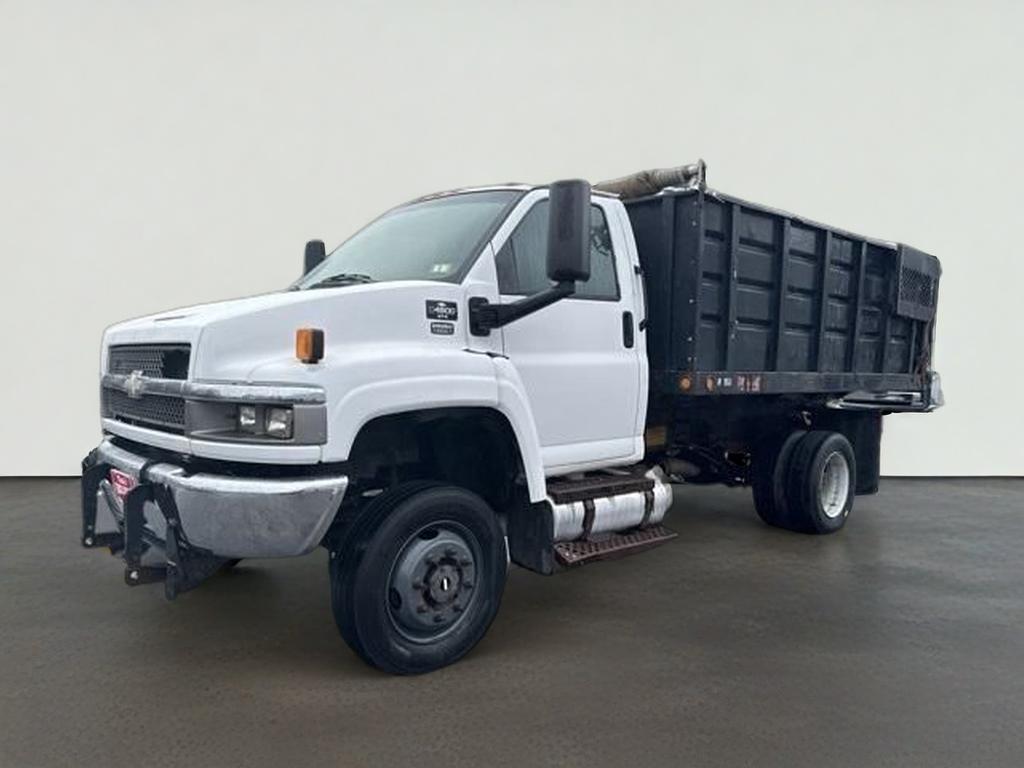

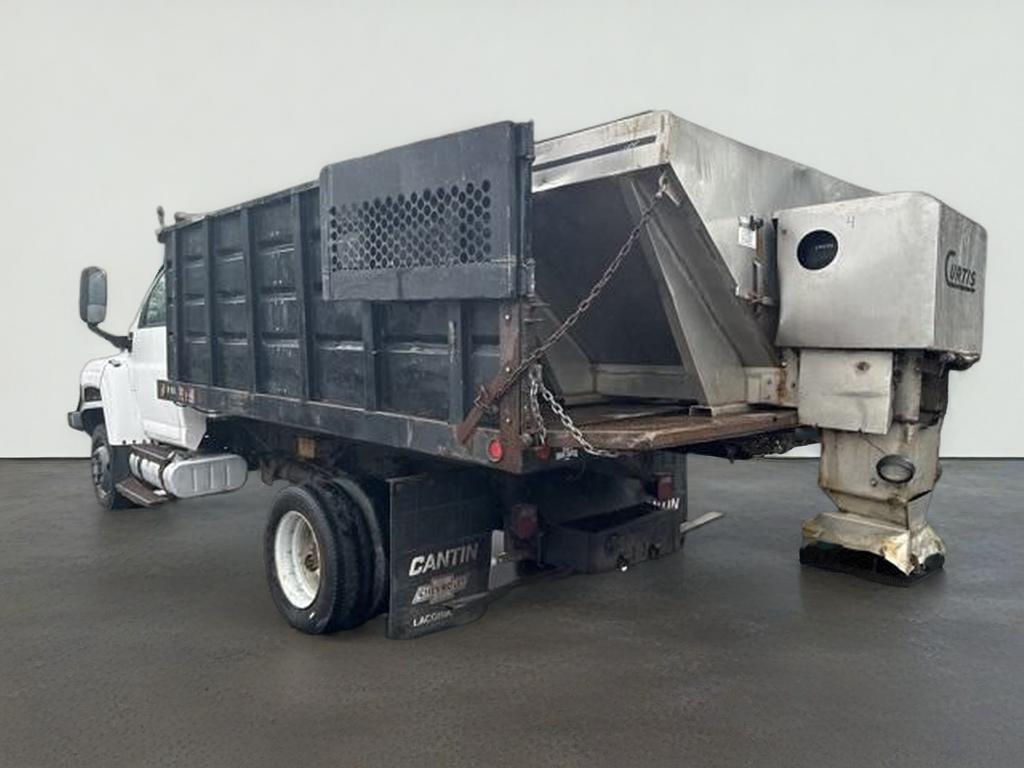

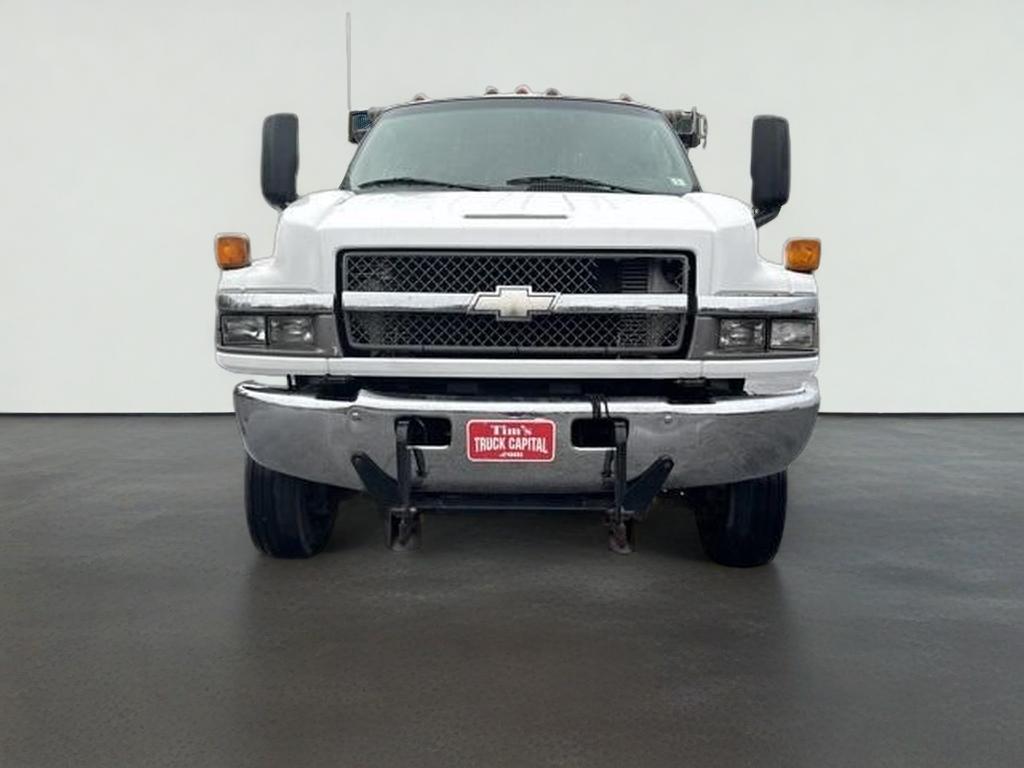

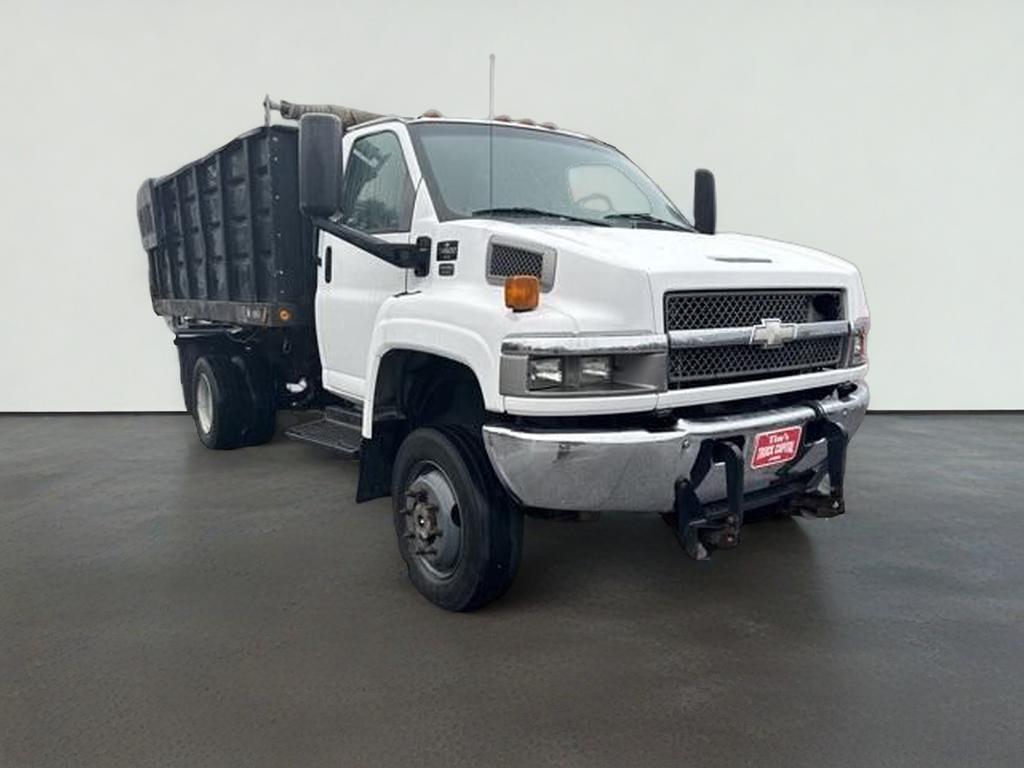

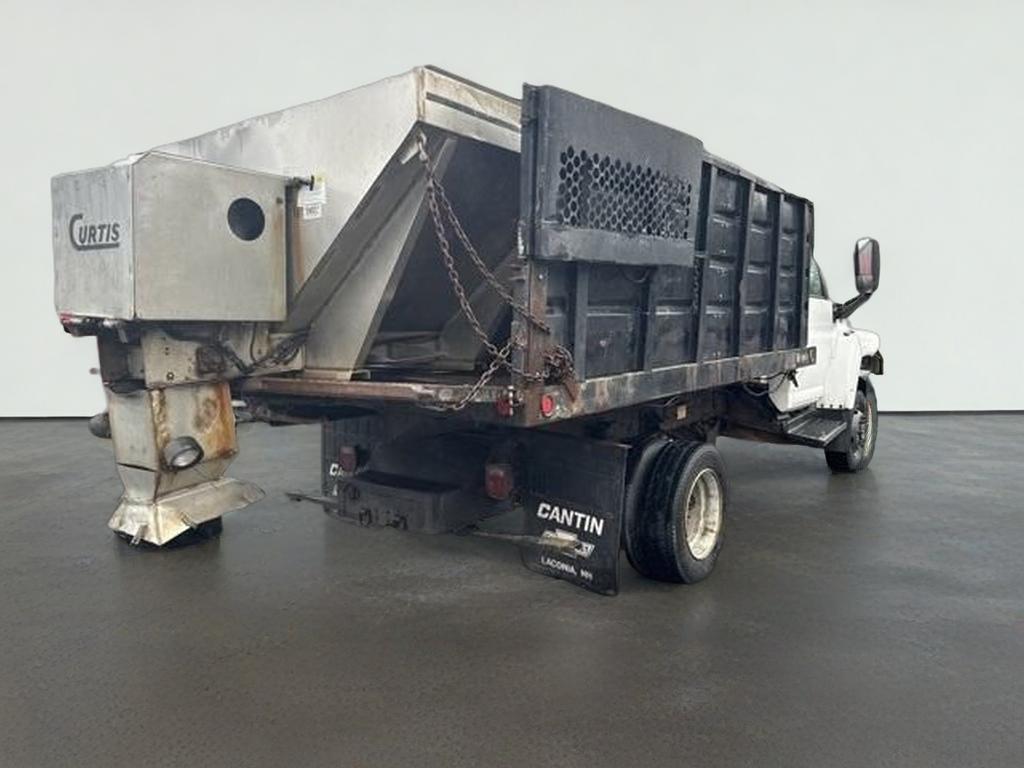

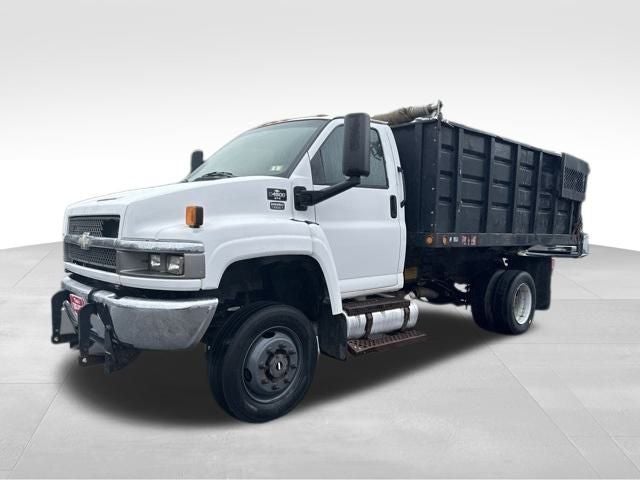

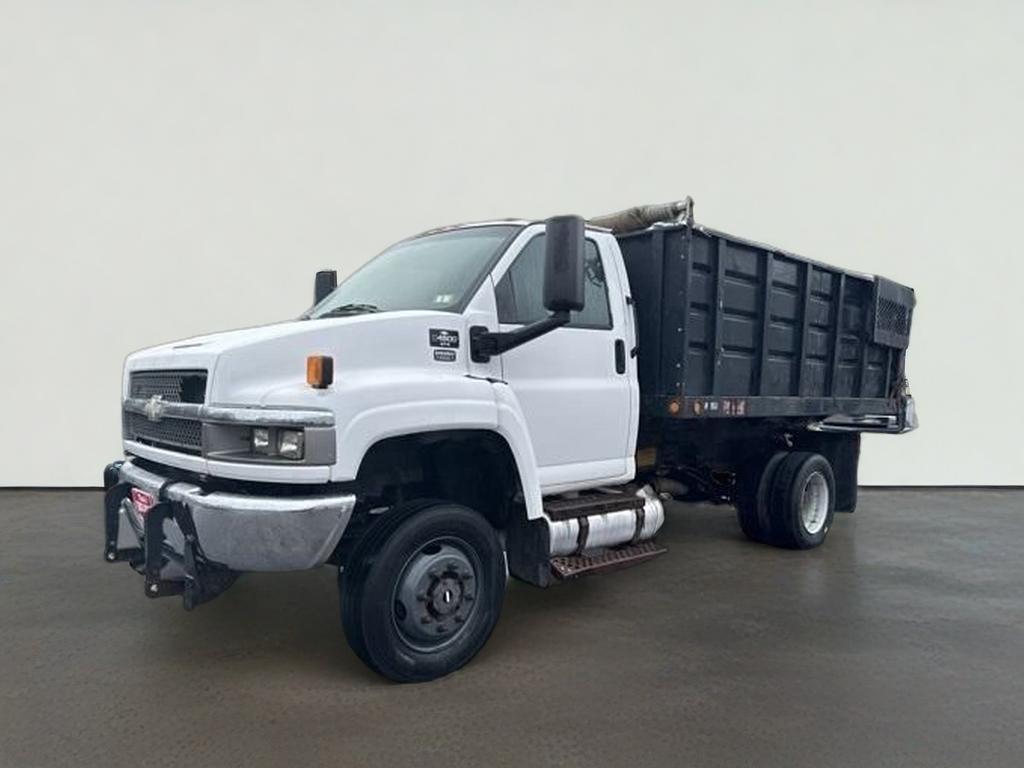

2008 Chevrolet C4500 Kodiak Duramax Dump truck
Visit our Store
- Tim's Truck Capital & Auto Sales, Inc
-
904 Suncook Valley Hwy Epsom Traffic Circle
Epsom, NH 03234
- Sales: 603-736-7720
- Service: 603-736-7477
- Parts: 603-736-7477
Vehicle Information
VIN:
1GBE4C3948F402686
Stock #:
ZC3293
Model Code:
CC4C044
-
Body Style 2D Standard Cab -
Exterior Color Summit White
-
Interior Color Dark Pewter
-
Mileage 86,680
-
Engine 8 Cyl - 6.6 L -
Transmission 6-Speed Automatic with Overdrive -
Fuel Type Diesel
Highlighted Features
Feature availability subject to final vehicle configuration. Please reference window sticker for more info.
- 4WD/AWD
Dealer Comments
** WHOLESALE SPECIAL ** Check out this Great Deal at AS - IS Wholesale Pricing!! We need to make room and for a Select Time, Limited Amounts of our Inventory has been Reduced to AS - IS Wholesale Pricing. These Deals Won't Last Long, so Stop by Mon-Fri 9 to 6/ Sat 9 to 4, However we are Closed on Sundays.
Eligible Benefits
All Features
- GVWR, 17,500 lbs. (7938 kg) capacity - GVWR. Maximum GCWR 26,000 lb. Note: Trucks that are used primarily to tow a trailer may be liable to Federal Excise Tax (FET). A New Law (Highway Transportation Bill HR3) was passed on August 10, 2005 - Check with IRS for guidelines
- Air cleaner, dry type
- Cooling, anti-freeze protection temperature - -40 degrees F (-40 degrees C)
- 75 mph (120 kph) speed governor - Required by the speed rating of the tires ordered
- Alternator, AD244 Delco-Remy 150-amp maximum (N/A with ANM Fire and Rescue or YF2 Ambulance Packages)
- Transfer case, New Venture Gear - model NV273 two-speed, electrically actuated, IP mounted switch, includes shield
- Front axle, 8000 lbs. (3629 kg) capacity - Solid drive axle. Up to 45 degree turn angle, includes 4 piston brake apply calipers and manual locking hubs
- Front suspension, tapered leaf, 8000 lbs. (3629 kg) capacity
- Front shock absorber, diameter 1.375" (35mm)
- Front stabilizer bar, Solid bar style, 1.5" (38mm)
- Front wheels, 19.5" x 6.75" (49.5 cm x 17.1 cm), steel disc - 8-hole. 10,000 lbs. (4536 kg) capacity, (Requires Q83 steel rear wheel and XTY or XNC front tires)
- Front tire size, 245/70R19.5G - 9090 lbs. (4123 kg) capacity (Requires KYR 65 mph or KYW 75 mph (120 kph) road speed governor, Q82 or RPM front wheels. With R4A Goodyear tire, requires R3H highway traction tread)
- Front tire manufacturer code, Goodyear (Requires S4A Goodyear)
- Front tread, highway traction
- Rear axle, single speed, Dana S14-110 13,500 lbs. (6123 kg) capacity - full floating, includes 2-piston brake applied calipers
- Four-wheel drive
- Rear axle ratio, 5.13:1 (Requires HD2 single speed rear axle)
- Rear limited slip differential
- Rear suspension, multi-leaf, 13,500 lbs. (6123 kg) capacity
- Rear suspension brackets are riveted to frame in lieu of bolts
- Rear shock absorber not desired (N/A with tapered leaf springs)
- Rear wheels, 19.5" x 6.75" (49.5 cm x 17.1 cm), steel disc - 8-hole, 20,000 lbs. (9072 kg) capacity (Requires Q82 front wheels and YTY or YNC rear tires)
- Rear tire size, 245/70R19.5G - 17,500 lbs. (7938 kg) capacity (Requires KYR 65 mph or KYW 75 mph (120 kph) road speed governor and Q83 or RPW rear wheels. With S4A Goodyear tire, requires S3H highway traction tread)
- Rear tire manufacturer code, Goodyear (Requires R4A Goodyear)
- Rear tread, highway traction
- Wheelbase, 152" (386.1 cm) - with 84" (213.4 cm) CA and 146" (370.8 cm) CE. Includes a 6mm 80,000 psi (551,600 kPa) yield strength, steel frame, RBM: 610,400 Section Modulus 7.63
- Frame, 8mm - 80,000 psi (551,600 kPa) yield strength, steel frame, RBM: 610,400 Section Modulus 7.63
- Fuel sender assembly. Robust fuel pump
- Tethered fuel cap
- Steering, power - ZF variable ratio power
- Brakes, front, power, 4-wheel disc, 4 channel ABS 4-piston - (See front axle options for more detail)
- Brakes, rear, power, 4-wheel disc, 4 channel ABS 2-piston - (See rear axle options for more detail)
- Parking brake, rear in-wheel park brake - hand lever operated
- Paint scheme, solid, upper color, Summit White
- Paint scheme, solid, lower color, Summit White
- Exterior roof drip moldings
- Bumper, front, steel, 96" (243.8 cm) wide - styled to minimized wall to wall turn diameter painted argent
- Steps under cab doors
- Front mud flaps
- Integral grille and fenders - The grille is the same color as hood with single halogen headlamps.
- Roof marker lamps
- Daytime running lamps
- Windows, Solar-Ray tinted. Light tinted windshield and side window glass with light transmissity of 70%
- Mirrors, manual, 102" (259 cm) wide load, integral arm, integral convex mirror - black molded composite 12" x 7" (30.5 cm x 17.8 cm) with 6" x 7" (15.2 cm x 17.8 cm) convex section
- Windshield wipers, 2-speed and intermittent, with pulse washers
- Provisions for mounting front license plate
- Positive door stops
- Seat, driver, high-back bucket, fixed height, manual adjuster - storage in the seat riser with a small lip at the front to stop contents from sliding out
- Seat, passenger, high-back bucket, fixed height, manual back angle adjuster - storage in the seat riser with a small lip at the front to stop contents from sliding out
- Seat trim, vinyl, Very Dark Pewter
- Interior trim, Very Dark Pewter (Requires 69V Very Dark Pewter vinyl or 69C Very Dark Pewter cloth)
- Trim console - located next to driver's seat and two cupholders
- Molded vinyl floor covering
- Steering wheel 16"
- Two sided single common key for doors and ignition
- Headlamp warning buzzer
- Warning tone, key-in-ignition
- Tachometer
- Vinyl door trim panels - with storage pocket on front doors, beverage holders, and reflector on all doors
- Stepwell storage areas at each door front and rear. Includes storage cover.
- Cloth headliner
- Sunshades, passenger side and driver side, cloth-covered
- Coat hooks (2) located on cab back panel
- Provisions for stereo - Includes AM/FM antenna, lead wiring for speakers, and separate door chime module (N/A with ZQ2 power convenience option)
- Air conditioning not desired - this option should be ordered only when a customer does not require air conditioning
- Powerpoints - two in-cab power sources (in addition to optional cigarette lighter) for electrical plug-in accessories
- Underhood bodybuilder connections accessory power supply - Provides 12V power supply from the battery with two separate 30 amp fused circuits
- 4-wheel disc, 4-channel ABS
- Air bags, Supplemental Inflatable Restraints not included.
- This vehicle does not include any air bags
- Seat belt warning indicator
- Daytime running lamps
DURAMAX DIESEL 6.6L, 330 HP (246 KW) @ 3000 RPM, 620 LB-FT TORQUE (840 N-M) @ 1600 RPM
- (Includes KPJ Engine shutdown) Oil Level Sensor: Warning sensor for low oil levels
- Front Frame Rating: - TBD -
- Cold Cranking Amps @ 0° F (Primary): 600
- Maximum Alternator Capacity (amps): 150
- Total Cooling System Capacity (qts): 27.3
- Total Cooling System Capacity (qts): 29.8
- Gross Axle Wt Rating - Front (lbs): 6250
- Gross Axle Wt Rating - Rear (lbs): 11000
- Curb Weight - Front (lbs): 5061.8
- Curb Weight - Rear (lbs): 3135.1
- Gross Vehicle Weight Rating Cap (lbs): 17500
- Gross Combined Wt Rating (lbs): 30000
- Suspension Type - Front: Tapered Leaf
- Suspension Type - Rear: MultiLeaf
- Spring Capacity - Front (lbs): 7000
- Spring Capacity - Rear (lbs): 11000
- Axle Type - Front: Reverse I Beam
- Axle Type - Rear: Single Speed
- Axle Capacity - Front (lbs): 6250
- Axle Capacity - Rear (lbs): 11000
- Axle Ratio (:1) - Rear: 5.13
- Shock Absorber Diameter - Front (mm): 35
- Stabilizer Bar Diameter - Front (in): 1.5
- Brake Type: Pwr 4 Piston
- Brake ABS System: 4-Wheel
- Disc - Front (Yes or ): Yes
- Disc - Rear (Yes or ): Yes
- Front Brake Rotor Diam x Thickness (in): 15 x 1.5
- Rear Brake Rotor Diam x Thickness (in): 15 x 1.5
- Number Of Tires Front: 2
- Number Of Tires Rear: 4
- Number Of Tires Spare: 1
- Front Wheel Size (in): 19.5 x 6.75
- Rear Wheel Size (in): 19.5 x 6.75
- Front Wheel Offset (mm): 5.60
- Rear Wheel Offset (mm): 5.60
- # of Bolt Holes - Front: 8
- # of Bolt Holes - Rear: 8
- Front Wheel Material: Steel
- Rear Wheel Material: Steel
- Front Wheel Description Cont.: Hub Piloted
- Rear Wheel Description Cont.: Hub Piloted
- Front Bolt Pattern: 8stud/275mm
- Rear Bolt Pattern: 8stud/275mm
- Steering Type: Pwr
- Steering Ratio (:1), On Center: 16.1
- Steering Ratio (:1), At Lock: 19.6
- Frame Type: Ladder-Type
- Sect Modulus Rails Only (in³): 7.63
- Frame RBM (N/A): 610400
- Frame Strength (lbs): 80000
- Frame Thickness (in): 0.24
- Fuel Tank Location: LH
- Length, Overall w/o rear bumper (in): 248
- Width, Max w/o mirrors (in): 95.9
- Height, Overall (in): 93.4
- Overhang, Front (in): 37.0
- Overhang, Rear w/o bumper (in): 74.7
- Front Bumper to Back of Cab (in): 105
- Frame Width, Rear (in): 2.84
- Passenger Capacity: 2
- Front Head Room (in): 41.7
- Front Leg Room (in): 41.1
- Front Shoulder Room (in): 68.8
- Front Hip Room (in): 65.0
- Vehicle Name: Chevrolet CC4500
- Body Style: Regular Chassis Cab 4WD
- Driver Ratio: 0.75
- Torque @ Clutch Engage (ft-lbs): 345
- Torque @ Clutch Engage (ft-lbs): 332
- Torque Converter: 1.73
- Torque Converter: 2.05
- Static Loaded Radius (in): 17.4
- Max Speed For Gradeability: 75
